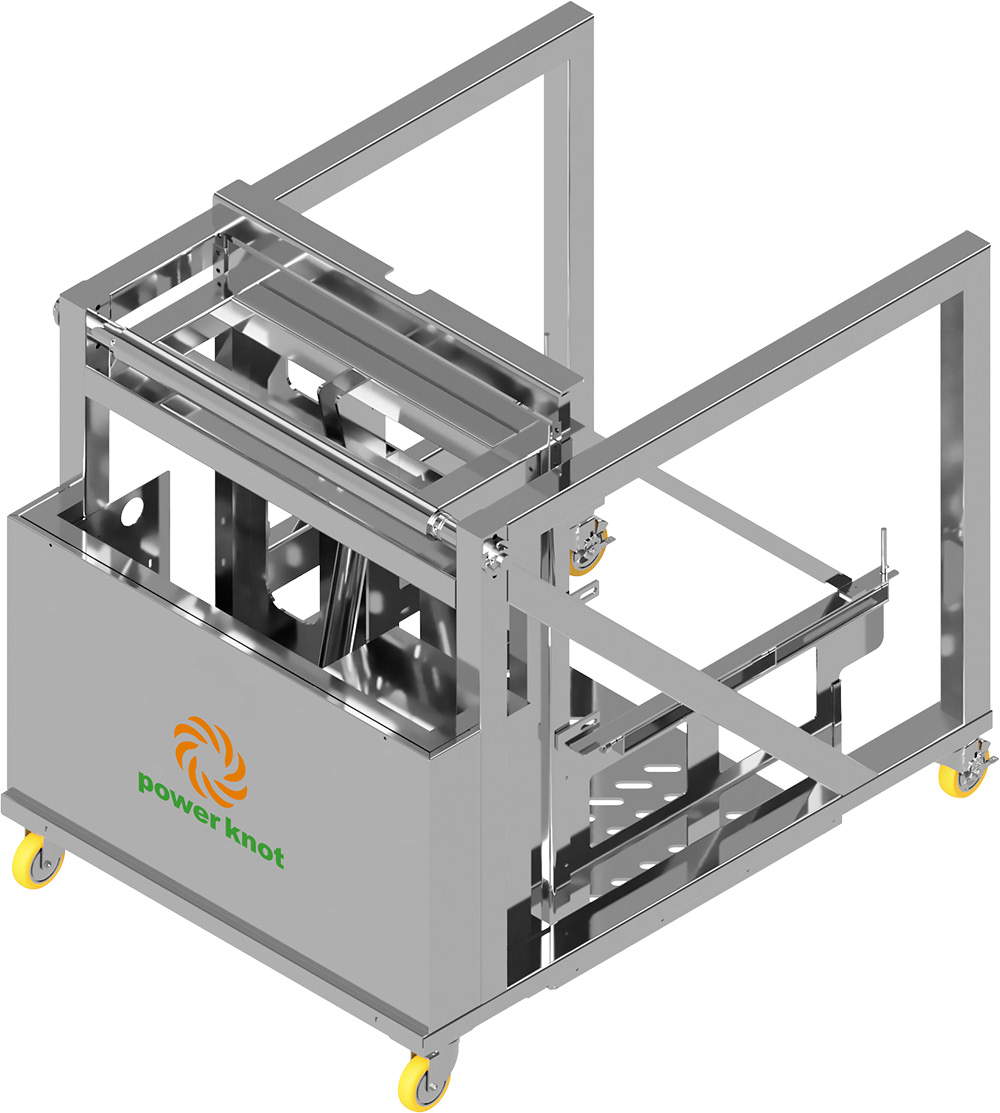

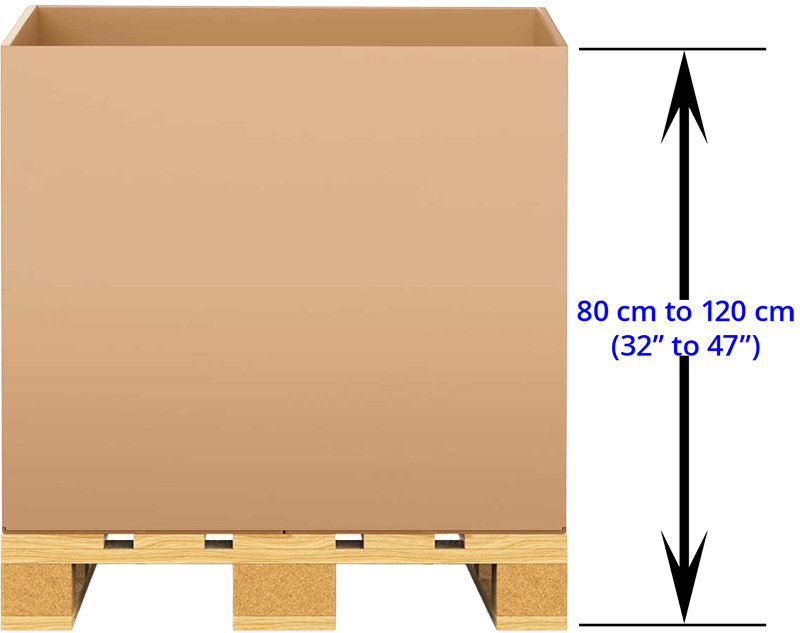

The SBT-360 bin tipper is designed to lift a variety of bins that are commonly used by paper shredding, pharmaceutical, and food preparation industries. The SBT-360 bin tipper can lift up to 140 kg (300 lb) and deposit the contents into a gaylord container from 80 cm to 120 cm (32” to 47”) tall. The machine can tip bins varying in sizes from 90 litre to 360 litre (24 gallon to 96 gallon).

This product is designed, developed, and assembled by Power Knot in Silicon Valley, California.

View Power Knot Flyer

Features

  • Tips at 30° to ensure all papers and documents are expelled from the bin
  • Other material uses include protein and carcass parts
  • 24 V system to provide at least 100 lifts of maximum load on a full charge
  • Less than 20 seconds to go up and down
  • Strong construction tolerates heavy duty usage and design ensures rigidity when lifting heavy bins

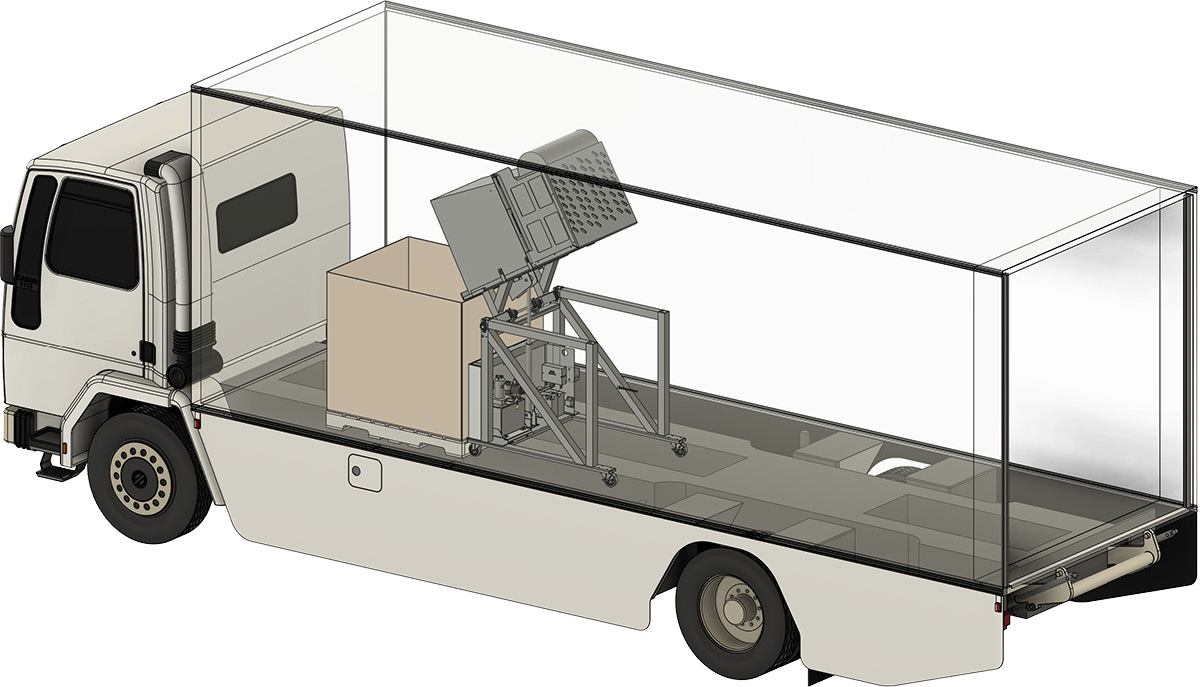

  • Maximum height with 360 litre (96 gallon) bin is 2.38 m (7.8’) to permit use in a truck
  • Lifting platform ensures compatibility with a wide range of bins
  • Spring loaded catches or chain to hold bins in place to ensure safety
  • Two fixed front casters and two 360° swivel casters ensure easy maneuverability
  • Casters are made of stainless steel and swivel casters have a lock
  • Built in battery charger to charge batteries in five hours
  • Battery indicator shows voltage, percentage of charge, and hours of use
  • Easily lifted with a forklift

Benefits

  • Maximize profits by unloading multiple bins in one visit
  • Minimize lifting and carrying by personnel to prevent injuries
  • Mobile machine can easily fit into trucks
  • Maximum tip angle ensures papers are expelled whilst working within the height constraints of a truck
  • Easily get a day’s use before the need to charge the batteries

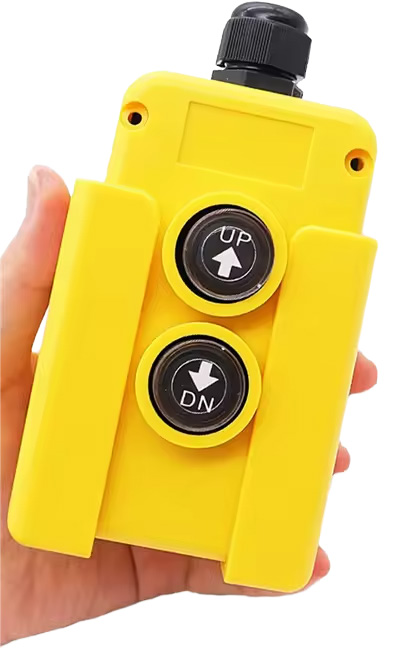

  • Simple and easy to use control switches
  • Stainless steel construction will not rust
  • Standard batteries are easily replaced

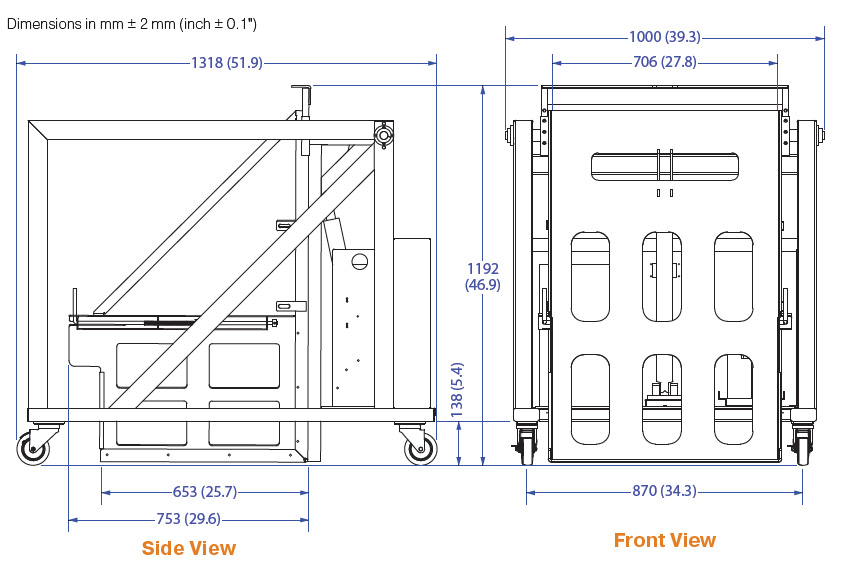

SBT-360 Details

Operating environment 10°C to 45°C (50°F to 113°F)
IP51 (not rated for outdoor use)
Construction All stainless steel chassis
Surface level ±4 mm (0.2”)
Weight when empty 200 kg (440 lb)
Lifting capacity 140 kg (300 lb)
Bin sizes Capacity: 90 litre to 360 litre (24 gallon to 96 gallon)
Width: 706 mm (27.8”) maximum
Lip height: 1170 mm (46.1”) adjustable to 1240 mm (48.8”)
Lifts when fully charged 100 minimum
AC power for charging 120 V ~ 240 V 50 Hz ~ 60 Hz, 5 A
ETL approved for USA and Canada; CE approved
Operating lifetime Expected to be 15 to 25 years
Warranty 1 year on parts and components except batteries
Subject to terms and conditions
Just call Tim at (712) 261-0137
